Diesel engines are built for heavy-duty performance, but piston rings still wear over time. Replacing them correctly restores compression, reduces oil consumption, and extends engine life. This guide from YATEXAUTO — yatexauto.com — covers everything you need to know about diesel piston ring replacement.
Signs Your Diesel Engine Needs New Piston Rings
- Excessive blue or white smoke from the exhaust
- High oil consumption (more than 1L per 1,000km)
- Loss of compression in one or more cylinders
- Reduced power and fuel efficiency
- Oil contamination in the air filter
Diesel vs Gasoline Piston Rings: Key Differences
Diesel engines operate at higher compression ratios (16:1 to 23:1 vs 8:1 to 12:1 for gasoline). This means:
- Diesel rings are thicker and more robust
- Diesel pistons are larger (often 100mm+ diameter)
- Higher installation forces require a heavy-duty compressor

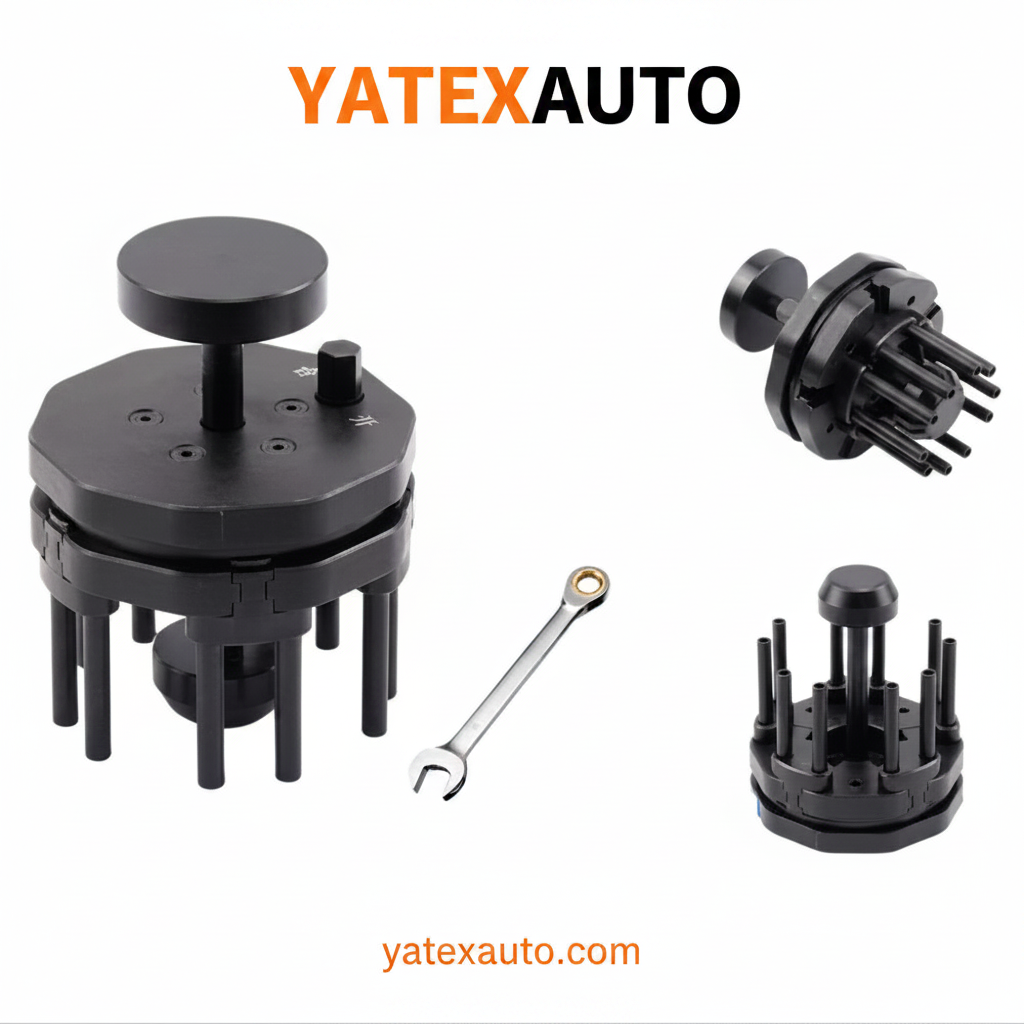

The YATEXAUTO Universal Piston Ring Compressor (100–155mm size) is specifically designed for large diesel pistons, handling the higher compression forces required for proper ring installation.
Tools Required for Diesel Ring Replacement
- YATEXAUTO Universal Piston Ring Compressor (100–155mm) — yatexauto.com
- Heavy-duty torque wrench (diesel rod bolts require high torque)
- Dial bore gauge (diesel bores require precise measurement)
- Feeler gauge set
- Ring expander tool
- Engine assembly lube
Step-by-Step Diesel Piston Ring Replacement
1. Remove the Cylinder Head
Drain coolant and oil. Remove the cylinder head following manufacturer torque sequence. Keep head bolts organized for inspection.
2. Remove Pistons
Remove the ridge at the top of each cylinder with a ridge reamer. Remove connecting rod caps and push pistons out from the bottom. Keep each piston matched to its cylinder.
3. Measure Cylinder Bores
Measure bore diameter and taper at multiple points. Diesel cylinders often require boring or honing due to the higher operating stresses.
4. Install New Rings
Check ring end gaps (diesel specs are typically tighter than gasoline). Install rings using a ring expander. Stagger gaps 120° apart.
5. Install Pistons with YATEXAUTO Compressor
Apply assembly lube to pistons, rings, and bores. Use the YATEXAUTO 100–155mm Piston Ring Compressor to compress rings and guide each piston into its bore. The single-bolt design handles the larger diesel pistons with ease.
6. Torque Rod Bolts
Torque connecting rod bolts to manufacturer specifications. Diesel rod bolts typically require 80–150 Nm — always use a calibrated torque wrench.
Why YATEXAUTO for Diesel Engine Work
Our large-size compressor (100–155mm) is built specifically for the demands of diesel engine rebuilding. Heavy-duty alloy construction, patented even-compression design, and built-in piston guide make it the professional's choice for diesel work.
🛒 Shop YATEXAUTO Diesel Piston Ring Compressor at yatexauto.com →
