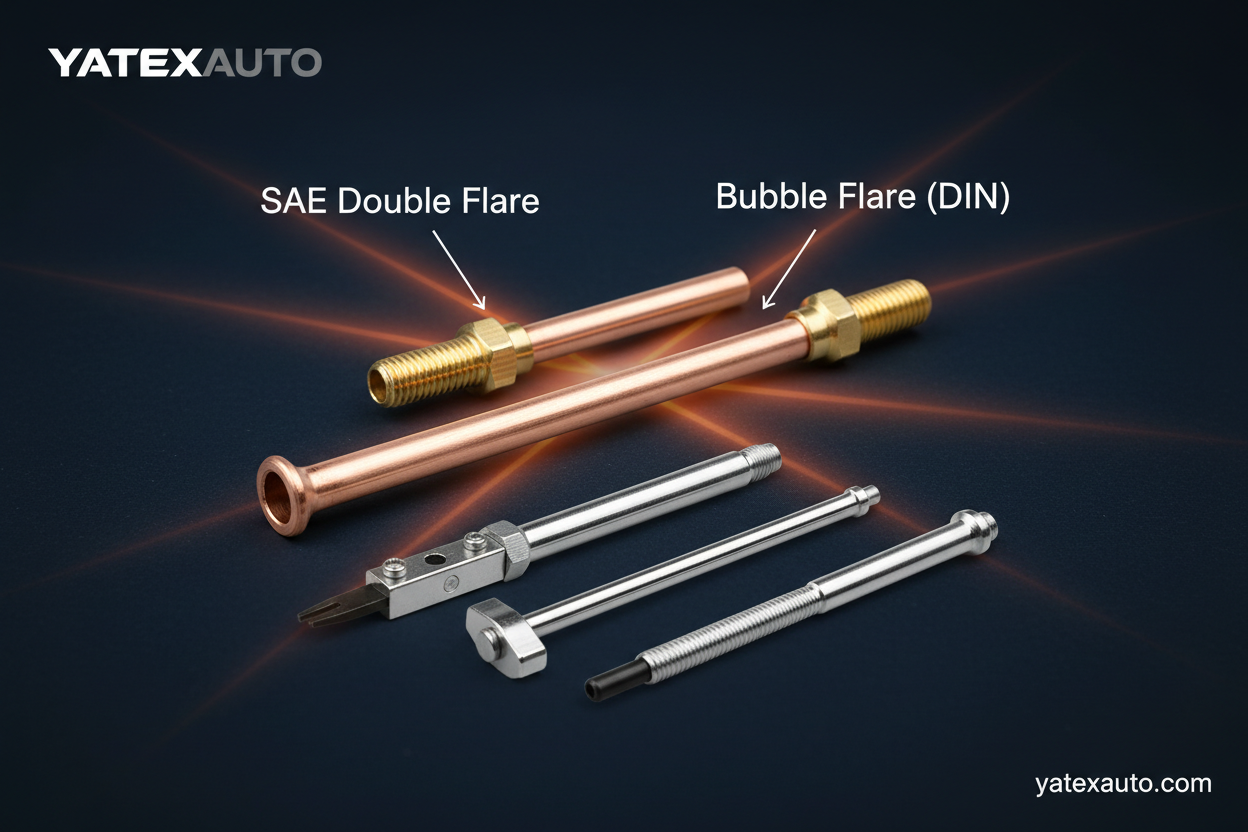

SAE Double Flare vs Bubble Flare: Which Do You Need?
Walk into any auto parts store and you'll find two main types of brake line flare fittings on the shelf — SAE double flare and bubble flare. They look similar, they're used for the same purpose, but they are not interchangeable. Using the wrong flare type on your vehicle can result in brake fluid leaks, fitting damage, and a brake system that fails when you need it most.
This guide explains exactly what each flare type is, which vehicles use which, and how to identify what your car needs before you start any brake line repair. If you're new to brake line work, start with our step-by-step guide to flaring brake lines at home.
What Is a SAE Double Flare?
The SAE double flare (also called a 45° double flare) is the most common brake line flare type used in North American vehicles. It gets its name from the two-stage process used to create it:
- The tube end is first formed into a small bubble or dome shape (Stage 1)
- The bubble is then folded back onto itself to create a double-walled, 45° flared end (Stage 2)
The result is a strong, double-walled flare that seats tightly against the fitting cone, creating a leak-free seal under high brake system pressure.
What Is a Bubble Flare (ISO Flare)?
The bubble flare — also known as an ISO flare or DIN flare — is the standard used in most European and Asian vehicles. Instead of folding back on itself like a double flare, the bubble flare forms a rounded, dome-shaped end that seats into a matching concave fitting.
Bubble flares are common on vehicles from manufacturers including Volkswagen, BMW, Mercedes-Benz, Audi, Volvo, Toyota, Honda, and many others.
Key Differences at a Glance
- Shape: Double flare = folded 45° cone | Bubble flare = rounded dome
- Wall thickness: Double flare = double-walled | Bubble flare = single-walled dome
- Common region: Double flare = North America | Bubble flare = Europe & Asia
- Fitting type: Double flare seats on a 45° cone | Bubble flare seats in a concave socket
- Interchangeable? No — never mix flare types
How to Identify Which Flare Type Your Vehicle Uses
The easiest way to identify your vehicle's flare type is to inspect an existing brake line fitting:
- If the fitting has a cone-shaped seat and the flare looks like a folded funnel — it's a SAE double flare
- If the fitting has a rounded concave socket and the flare looks like a small dome or bubble — it's a bubble flare
You can also check your vehicle's service manual or look up the specification by make, model, and year. As a general rule:
- SAE Double Flare: Most US-made vehicles (GM, Ford, Chrysler) and older vehicles
- Bubble Flare: Most European and Japanese vehicles, and many modern Asian-market vehicles
What About Single Flare?
Single flares are rarely used on brake lines in modern vehicles because they are not strong enough to withstand the pressure of a hydraulic brake system. Single flares are more commonly found on fuel lines, oil lines, and low-pressure hydraulic systems. Never use a single flare on a brake line unless specifically required by the manufacturer.
Can You Convert Between Flare Types?
No. You cannot convert a bubble flare fitting to accept a double flare, or vice versa. The fitting geometry is completely different. If you're replacing a section of brake line, always match the original flare type and use the correct fittings for your vehicle. See our guide on common brake line repair mistakes to avoid the most frequent errors.
Do You Need a Different Tool for Each Flare Type?
Yes — but a quality 3-in-1 flaring kit covers all three types in one tool. The YATEXAUTO 12-Piece Brake Line Flaring Tool Kit supports SAE double flare, bubble flare (ISO), and single flare with the correct adapters included. This means one kit handles virtually every vehicle on the road, whether you're working on a Ford F-150 or a BMW 3 Series. Learn how to choose the right brake line flaring tool kit for your needs.
Summary: Which Flare Do You Need?
- Working on a North American vehicle (GM, Ford, Chrysler, most trucks)? → SAE Double Flare
- Working on a European vehicle (VW, BMW, Mercedes, Audi, Volvo)? → Bubble Flare
- Working on a Japanese or Korean vehicle (Toyota, Honda, Hyundai, Kia)? → Usually Bubble Flare, but always verify
- Working on fuel or oil lines? → Single Flare may be acceptable
When in doubt, always check your vehicle's service manual or consult a professional before cutting any brake lines. The few minutes spent confirming the correct flare type can save hours of rework — and more importantly, keep your brake system safe and leak-free.
Frequently Asked Questions
What happens if I use the wrong flare type?
The fitting will not seat correctly, which will cause brake fluid leaks. In a worst-case scenario, the fitting can fail completely under braking pressure, resulting in total brake failure. Always use the correct flare type for your vehicle.
Can I use a bubble flare tool to make a double flare?
No. Each flare type requires specific adapters and a different forming process. A 3-in-1 flaring kit includes all the adapters needed for both flare types.
Are bubble flares stronger than double flares?
Both are engineered to handle the pressure requirements of modern hydraulic brake systems when made correctly with the right tool and the correct tube material. Neither is inherently stronger — what matters is using the correct type for your vehicle's fittings.
